美国Lansmont PDT 80M 跌落尝试机
品牌: 美国Lansmont(兰斯蒙特)
范例: 包装跌落尝试机(手动)
型号: PDT80M
规格: 负载80kg
概述: PDT 80M是Lansmont经济型跌落尝试机,PDT 80M连系了精肯定位手艺与疾速充气手艺,但它不装备电机晋升定位体系,而是经由进程手动定位
产物具体


Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-01.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-03.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-08.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-04.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-05.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-06.png


Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-07.png



Lansmont(美国蓝氏)入口紧密跌落尝试机 PDT80M-09.png




美国Lansmont PDT 80M 跌落尝试机,运输包装件垂直打击跌落尝试,产物跌落测试,跌落打击阐发,单双臂跌落碰撞台,GB 4857.5,ISO 2248,ASTM D5276(入口 兰斯蒙特)

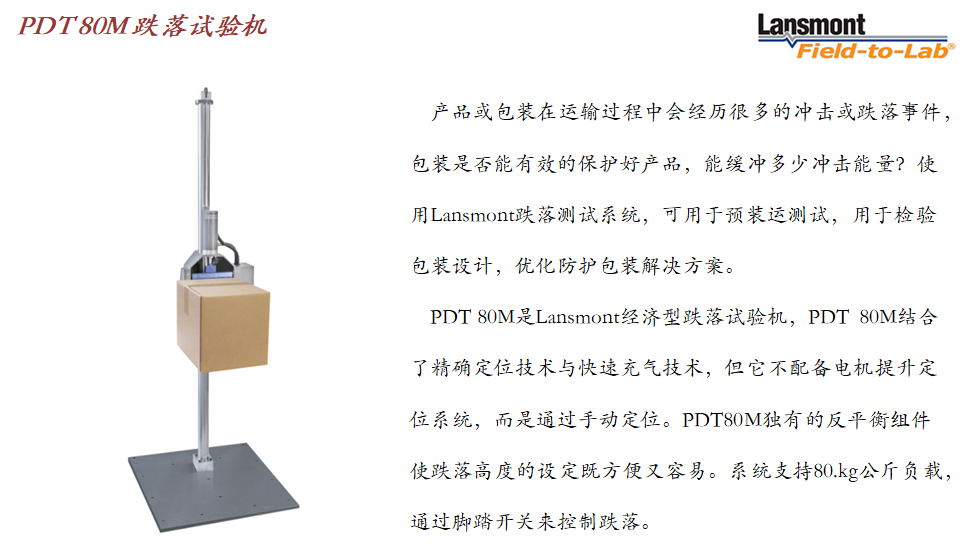

PDT 80M 跌落尝试机

产物或包装在运输进程中会履历良多的打击或跌落事务,包装是不是能有用的掩护好产物,能缓冲几多打击能量?利用Lansmont跌落测试体系,可用于预装运测试,用于查验包装设想,优化防护包装处理计划。PDT 80M是Lansmont经济型跌落尝试机,PDT 80M连系了精肯定位手艺与疾速充气手艺,但它不装备电机晋升定位体系,而是经由进程手动定位。PDT80M独占的反均衡组件使跌落高度的设定既便利又轻易。体系撑持80.kg千克负载,经由进程脚踏开关来节制跌落。


参考规范

GB/T 4857.5-1992 包装 运输包装件 跌落尝试体例

ASTM D5276 - 98(2017) Standard Test Method for Drop Test of Loaded Containers by Free Fall

ISO 2248-1985 包装 满装的运输包装 坠落垂直打击尝试

DIN EN 22248-1993 包装.满装的运输包装.坠落垂直打击尝试

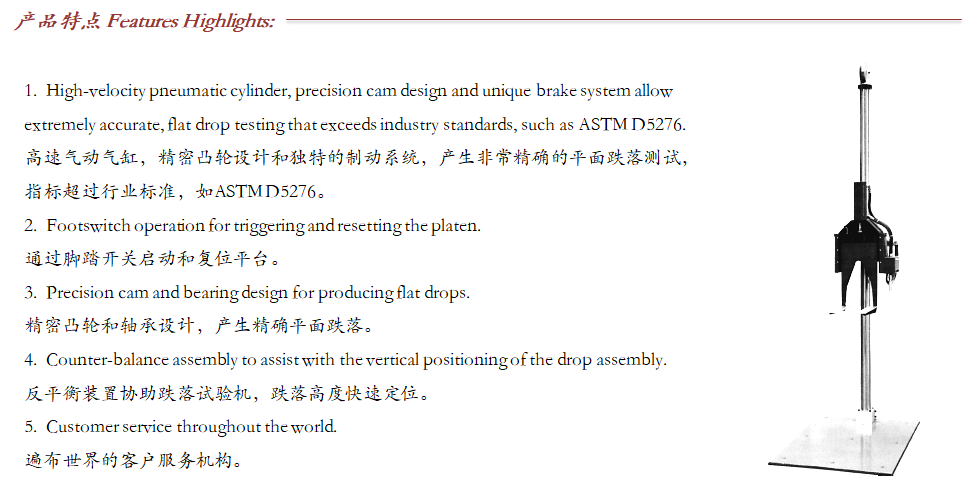

产物特色 Features Highlights:

1.   High-velocity pneumatic cylinder, precision cam design and unique brake system allow extremely accurate, flat drop testing that exceeds industry standards, such as ASTM D5276.

高速气动气缸,紧密凸轮设想和怪异的制动体系,产生很是切确的立体跌落测试,目标跨越行业规范,如ASTM D5276。

2.   Footswitch operation for triggering and resetting the platen.

经由进程脚踏开关启动和复位平台。

3.   Precision cam and bearing design for producing flat drops.

紧密凸轮和轴承设想,产生切确立体跌落。

4.   Counter-balance assembly to assist with the vertical positioning of the drop assembly.

反均衡装配辅佐跌落尝试机,跌落高度疾速定位。

5.   Customer service throughout the world.

遍布天下的客户办事机构。


机能目标   Specifications :

1.Maximum Package Weight **包装品质:

规范托盘 177 lbs. (80.0 kg) ,扩大托盘150 lbs. (68.0 kg)

2.Maximum Package Size **包装尺寸:

规范托盘 24.0 in. (61.0 cm) 前后,扩大托盘36.0 in. (91.5 cm) 前后

3.Drop Height Range 跌落高度规模:

规范托盘 12.0 - 36.0 in. (30.5 - 91.5 cm), 1.00 in. (2.54 cm) 增量

36.0 - 42.0 in. (91.5 - 107 cm), 2.00 in. (5.08 cm) increments

35.0 – 71.0 in. (88.9 – 180 cm) and 36.0 – 72.0 in. (91.5 – 183 cm), 6.0 in. (15.2 cm)增量

扩大托盘 18.0 - 36.0 in. (45.7 - 91.5 cm), 1.00 in. (2.54 cm)增量

36.0 - 42.0 in. (91.5 - 107 cm), 2.00 in. (5.08 cm)增量

35.0 – 71.0 in. (88.9 – 180 cm) and 36.0 – 72.0 in. (91.5 – 183 cm), 6.0 in. (15.2 cm)增量

4.每一个跌落尝试机装运前跌落精度均校准到+/-2度内


产物细节 Details:

Θ Foot Switch   脚踏开关:

The drop mechanism of the PDT 80M Drop Tester is operated via a footswitch. When the footswitch is pressed, the drop leaf is activated and performs a drop test. After the footswitch is released, the drop leaf will reset. The footswitch is protected inside a metal guard enclosure to avoid accidental activation

PDT 80M经由进程脚踏开关操纵。脚踏开关被按下时,翻转托架被激活并履行跌落测试;脚踏开关开释后,翻转托架复位。脚踏开关在一个金属外壳掩护罩中,以防止不测激活。

Θ Precision Cam Design 紧密凸轮:

Lansmont’s precision cam and bearings design is a key machine feature for producing a flat drop event. When the drop tester is armed and fired, the drop leaf first moves straight down faster than the package and then swings out of the way in time to clear the path for the package’s free fall.

Lansmont的紧密凸轮和轴承设想是产物立体跌落的主要保障。当跌落测试启动时, 勾当翻板疾速降落并实时向后翻转,保障产物按自在落体无妨碍下跌。

Θ Counter-Balance Assembly 均衡组建:

The drop height of the PDT 80M Drop Tester is adjusted manually. To alleviate the weight of the drop assembly when making height adjustments, the PDT 80M incorporates a unique counter–balance assembly. This feature makes the height adjustment process simple and easy for any test engineer.

PDT 80M经由进程手动体例调剂跌落高度,为处理大品质产物手动调剂高度的坚苦,接纳怪异的品质均衡组件设想,使跌落高度的设定既便利又轻易。


产物选项 Options:

Θ Edge and Corner Holding Fixture 边角牢固器:

The optional flexible structure mounts to the drop tester and holds packages in position prior to the drop event when performing edge or corner drops.

边角牢固器用来节制测试中大型样品的跌落标的目的。该组件能够根据用户的须要停止定制。

Θ Extended Platen 扩大托架:

If your package dimensions are too big for the standard platen, we offer an optional extended platen to accommodate larger package sizes. The extended platen holds packages with a front-to-back dimension of up to 36 inches.

若是包尺寸对规范的平台来讲太大,咱们供给一个可选的扩大平台来包容更大的包巨细。扩大的平台最高可达36英寸的前后尺寸。

Θ Slotted and Oversized Baseplates开槽大基座:

For customers that need to test to drop heights below 12 inches, we have a slotted baseplate option and foundation kit that allows for drops as low as 1 inch.

Larger packages may necessitate a larger impact surface. We offer an oversized baseplate which widens the impact area from the standard 36 inches to 60 inches.

对跌落高度较低的测试,可设置装备摆设开槽基座。开槽基座选项能够让跌落高度低到1英寸。较大的包装能够须要更大的撞击面。咱们供给了一个超大的基板,打击面积从规范的36英寸扩大到60英寸。

Θ Test Partner Data Acquisition收罗阐发:

Lansmont Test Partner sets the standard for data acquisition systems used for laboratory impact testing. Test Partner is a powerful combination of software and hardware specifically tailored to capture and analyze mechanical shock, drop, and impact events.

Lansmont TP3/TP4 是一种壮大的软件和硬件组合,特地为捉拿和阐发打击、跌落和别的瞬态打击事务而量身定制。它能够同时收罗多达512个传感器的数据,阐发包含加速率、应变、温度、压力等量纲的旌旗灯号。


产物利用 Applications:

Controlled Orientation 跌落标的目的节制:

Test procedures and industry standards specify the requirement for controlled orientation drops, resulting in test sample impacts on predetermined faces, corners and edges. Lansmont Precision Drop Testers are built in accordance with ASTM D5276 requirements.

根据行业规范测试法式,跌落测试样本对预约打击面履行面、角和边的打击测试。Lansmont紧密跌落测试仪知足ASTM D5276等国际和国际规范,履行规范划定面、角、边、测试。

Hazard Drops 妨碍跌落

In reality, not all items are dropped on flat, laboratory-style floors. In fact, some small parcel distribution tests require drops to occur on a predetermined hazard.

并不是一切的物品跌落都在平坦的或像尝试室一样的地板上,一些客户在用Lansmont跌落尝试机测试小型的包裹跌落时,会在底板安排障碍块,摹拟更实在的情况。

Product Drops产物跌落

Lansmont customers use drop testers to perform bare product drop testing to simulate in-use events that may occur once out of their protective packaging and in the hands of the consumer.

Lansmont客户利用跌落尝试机来履行产物袒露跌落测试,以摹拟在不掩护包装或在花费者手滑落时能够产生的跌落事务。

Extended Height 扩大高度

Dangerous goods packages undergo severe drop tests during certification testing. Other high performance products and packages also need to survive high energy impacts. Lansmont offers extended height drop testers to satisfy these testing applications. Custom drop height options are available to extend your machine drop height range.

在认证测试时代,风险货色包装会履历更严酷的跌落测试;别的高机能的产物和包装也须要抵当更高能耗的打击,Lansmont供给了可扩大高度选件来知足这些测试利用请求。
